- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1325
- :
- :
- :
- :
- :
- :

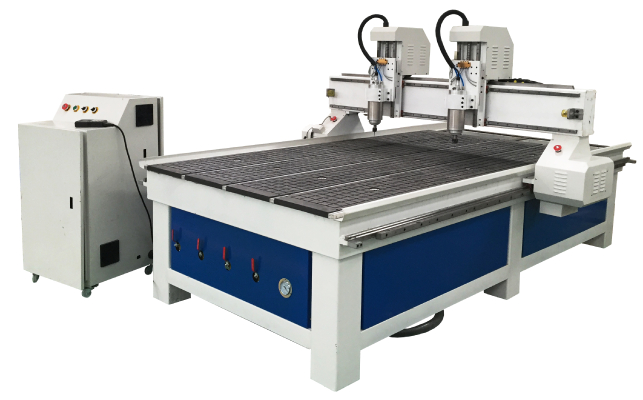

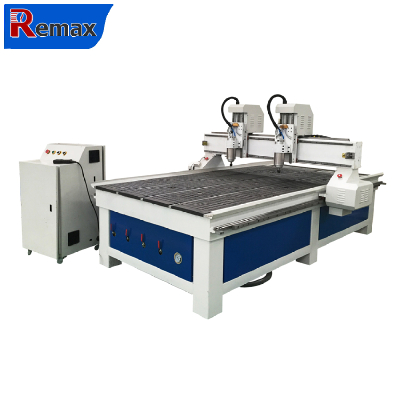

2 spindle cnc router 1325
Application:
2 head cnc router is mainly used in acrylic , PVC board , MDF board and other boards processing , wave board production , various types of artificial board shaped cutting , LED , neon channel literally cutting , light box molding and so on.
Features:
1. Kinematic assembly in welded steel with fixed table and mobile gantry, solid, resistant and never deformation
2. Two heads can work at the same time or alone, this improves the efficiency of the work, practical and economical
3. We can manufacture the machine with multi-heads according to the customer's requirements, as well as the worktable surface.
4. Three axes with anti-dust equipments ensure a longer machine life
5. Select the best machine accessories to minimize the failure rate
6. Multiple compatible software such as Type 3, Artcam or Castmate, as well as a variety of CAD / CAM design software.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1325
- :
- :
- :
- :
- :
- :
Parameters:
Model | Remax-1325 double head CNC Router |
| X,Y,Z Working Area | 1300*2500*300mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | T-slot Aluminum PVC or Vacuum adsorption table |
| Frame | By welded steel |
| Max. Power Consumption | (Without Spindle) 3Kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 2*4.5kw air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Fuling or Delta |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Yako |
| ER Clamp Holder | ER 25 |
| Support | By calling or email or training |
