Product Details
  • Place of Origin:  Shandong
  • Brand Name:  Remax
  • Model Number:  1325

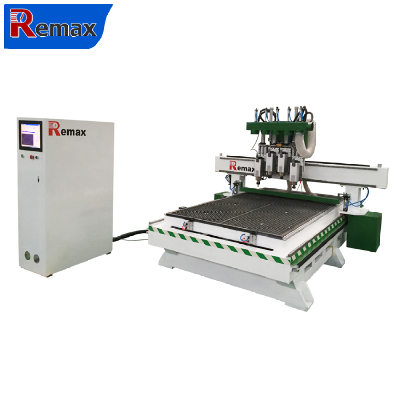

multi head cnc wood cutting machine/4 independent spindle cnc router for Multi-process 1325


 Features:



1)Rack gear transmission ensure fast speed and accuracy.

2)Wede steel pipe lathe bed,strong and never out of shape.

3)Adopt Italy spindle ensure working steadily and high precision.

4)Import square rail ensure high accuracy and heavy workload.

5)Adopt vacuum system.Made by advanced international technology,with double cavities,

pump of strong adsorption,can adsorb different size materials.

6)Vacuum table with 6 vacuum zones,which can absorb different size materials.

7)This machine has auto tool sensors system, convenience and save time. The advantage is low

 investment, high profit, low maintemance easy to operate. It is also easy foe new user to operate.

8)Humanistic design,the machine can be disassembled,soit is easily transported.


  • Place of Origin:  Shandong
  • Brand Name:  Remax
  • Model Number:  1325

 Parameter :



DescriptionParameter
X,Y,Z Workiong Area1300x2500x200mm
X,Y,Z Repositioning Accuracy±0.03mm
X,Y,Z Traveling Positioning Auccuracy±0.03/300mm
Table SurfaceVacuum or T-slot Table
FrameWelded Structure
X,Y StructureRack and Pinion Drive, Hiwin Rail Linear Guide
Z SturctureHiwin Rail Linear Guide And TBI Ball Screw
Max. Power Consumption(Without Spindle)2.5kw~3kw
Max.Rapid Travel Rate 25000mm/min
Max.Working Speed18000mm/min
Spidle Speed

3 kw

Spindle Power0-24000RPM
Drive MotorsStepper Motor
Tool ChangingAuto Tool Changer
Working VoltageAC380V/50/60Hz,PH(Option:220V)
Command LanguageG Code
Operating SystemDSP System(Options:Ncstudion/Mach 3 PC Software)
Computer InterfaceUSB
Flash Memory128M(U Disk)
CollectER25
X,Y Resolution <0.01mm
Software Compatibility Type3/UcancameV9 Software,(Option:Artcame Software)
Running Environment Temperature0-45Centigrade
Relative Humidity30%-75%
Inverter Delta/Fuling
Electrical ComponentsSchneider

Limit Switch

OMRON
Driver

Leadshine or Yako

Warranty

One yeart,expect consumable parts

SupportBy calling or Email or trainin
