- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1212
- :
- :
- :
- :
- :
- :
- :
- :
Features:
1. Kinematic assembly in welded steel with fixed table and mobile gantry, solid, resistant and never deformation
2. Four heads can work at the same time or alone, this improves the efficiency of the work, practical and economical
3. We can manufacture the machine with multi-heads according to the customer's requirements, as well as the worktable surface.
4. Three axes with anti-dust equipments ensure a longer machine life
5. Select the best machine accessories to minimize the failure rate
6. Multiple compatible software such as Type 3, Artcam or Castmate, as well as a variety of CAD / CAM design software.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1212
- :
- :
- :
- :
- :
- :
- :
- :
Parameters:

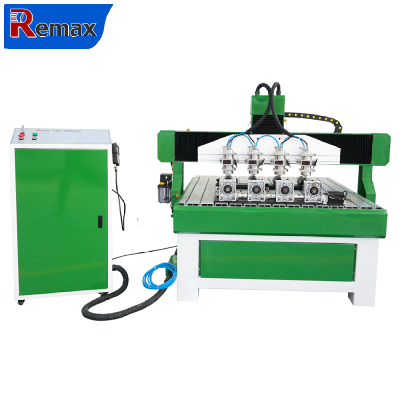

Model | Remax-1212 4 head CNC Router |
| X,Y,Z Working Area | 1200*1200*350mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | T-slot Aluminum PVC or Vacuum adsorption table |
| Frame | By welded steel |
| X, Y Structure | Transmission by gear and rack |
| Z Structure | HIWIN Rail Linear Guide and TBI Ball Screw |
| Max. Power Consumption | (Without Spindle) 3Kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 2.2 kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Stepper Motor |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G Code |
| Operating System | Ncstudio or Mach3 PC Software |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/Ucancame V9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Fuling or Delta |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Yako |
| ER Clamp Holder | ER 25 |
| Support | By calling or email or training |
