- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 3040
- :
- :
- :
- :
- :
- :
- :
Application:

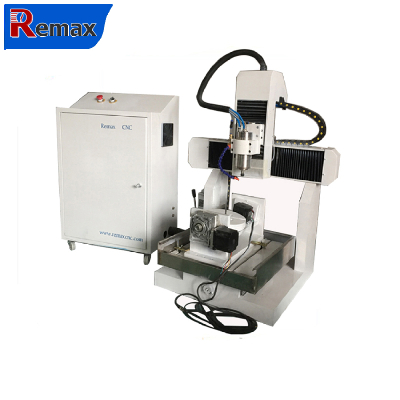

desktop 5 axis milling is used for engraving and cutting wood, plastic, acrycli, aluminum, brass, MDF, PVC, plywood, double color board, PCB and other materials. It can both process plate and round subjects. with auto tool change function, can process more complex materials with high speed.
Features:
1.Remax-3040 5 axis cnc router can work at same time for 5 axis. it use March 3 control system, can save the cost greatly.
2.for the rotary axis configurate with reducer, so it can stop at any angel.
3.the whole machine is cast iron, so it can process metal kind of materials.
4.Table moving and ball screw transmission can prove the work precision highly.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 3040
- :
- :
- :
- :
- :
- :
- :
Parameters:
NO. | Description | 5 axis mini cnc machine |
1 | X,Y,Z Working Area | 300*400*200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/200mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | iron Table |
5 | Frame | cast iron Structure |
6 | X, Y Structure | Hiwin Rail Linear Guide |
7 | Z Structure | TBI Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.2kw |
9 | Max. Rapid Travel Rate | 25000mm/min |
10 | Max. Working Speed | 18000mm/min |
11 | Spindle Power | 2.2kw water cooling spinle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | Stepper Motor |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | NC STUDIO control system |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3 |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Inverter | Delta/Fuling |
25 | Electrical components | Schneider |
26 | Limit switch | OMRON |
27 | Driver | Leadshine or Yako |
