- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1325
- :
- :
- :
- :
- :

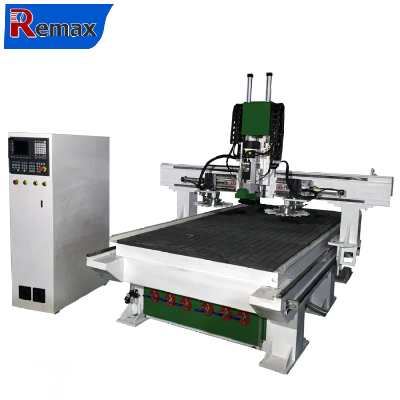

double disc tool changer cnc router 1325
Application:
This type isprocess center machine, equipped with 2-3knds of cutters, there is no need to change the cutters when engraving or cutting. the program can work automatically. the afvantage is low investment, high profit, low matainance, easy to operate. it's also easy for new user to operate.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1325
- :
- :
- :
- :
- :
Parameter:
Working area | X axis | 1300mm |
Y axis | 2500mm | |
Z axis | 200mm | |
Process precision | ±0.05mm | |
Reposition precision | ±0.05mm | |
Spindle | 3.0kw air cooling | |
X,Y,Z structure | X, Y rack, Z TBI ball screw | |
Max speed | 60000mm/min | |
Working speed | 25000mm/min | |
Driver | fuling | |
Spindle speed | 0-24000rpm/min | |
Motor type | Stepper motor or servo motor | |
Command code | G code | |
Working voltage | AC380V/50HZ AC220V/60HZ | |
Operating system | MULTECH / original NC STUDIO/ NK260 | |
