- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 6070
- :
- :
- :
- :
- :
- :

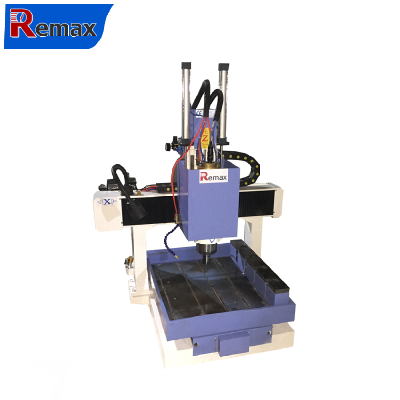

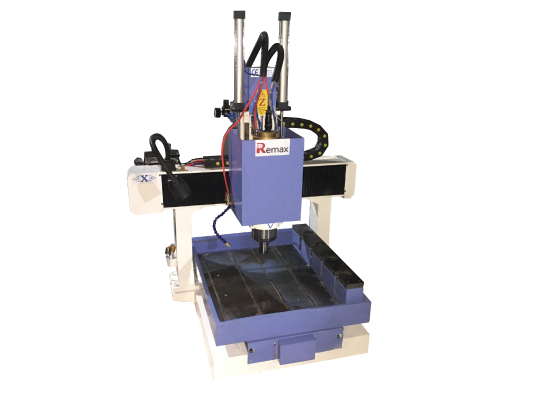

mini atc cnc router 6070
Application:
ATC cnc machine used for woodworking, and other materials, such as wood door,
art craft, cabinet, windows, acrylic and other materials. It can engrave many different
patterns, and it can tool change automaticlly.
Features:
This is ATC type cnc router machine with linear type auto tool change function. it is suit for diverse complecity products processing, wide functions: engraving and milling, drilling, cutting, side milling, chamfering edge and so on.
Alll mechanical, electrical components adopt international top brand products, such as Germany vacuum system, servo dirver system from Japan, Italy imported spindle.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 6070
- :
- :
- :
- :
- :
- :
Parameters:
| Working Area | 600x700x200mm |
| X, Y, Z Repositioning Positioning Accuracy | 0.03mm |
| X, Y, Z Traveling Positioning Accuracy | 03/200mm |
| Table Surface | PVC worktable |
| Machine frame | cast iron |
| X, Y Structure | hiwn or PMI suqare rail |
| Z Structure | TBI Ball Screw and linear guide |
| Max. Power Consumption (without spindle) | 3.6kw |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | HQD5.5KW water cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | YASKAWA SERVO motor |
| Working Voltage | AC380V/50/60Hz, 3PH |
| Command code | G Code, HPGL |
| Operating System | WEIHONG NK260 |
| Flash Memory | 2G (U Disk) |
| Collet | ER32 |
| X, Y Resolution | 0.02mm |
| Software Compatibility | Type3 or Wentai, ARTCAM/CAXA |
| Electrical components | Schneider |
