- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1530
- :
- :
- :
- :
- :
- :

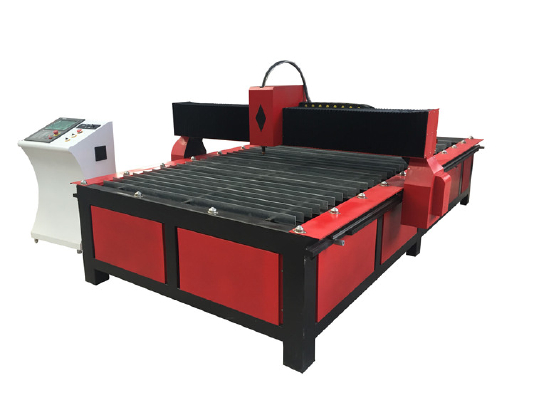

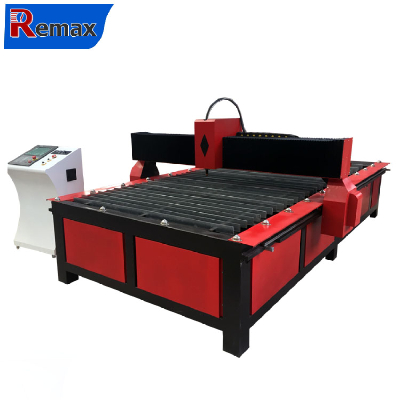

Plasma cutting machine 1530
Features:
1. Fully welded structure, Y axis and X axis are with racks and linear guides, Z axis is with automatic electric lifting device, to ensure cutting speed and quality.
2. Double drive, stable performance.
3. The installation is very simple, all types of CAD graphics can be read directly by our system via the USB key. The software can be edited automatically.
4. Equipped with the collocated USB interface and automatic code conversion software for CAD drawing, the CAD drawing can be directly entered into the cutting machine via the U disk.
5. The tips for each operation are displayed on the screen at all times, so that operators can use our system without being trained or read instructions.
6. Indicator lights placed for different couplings. The towing diagnosis is clear at a glance and maintenance is convenient and quick.
7. There are necessary keys to control movement in the torch trolley so that the operator can easily move the torch to the correct location.
8. With the breaking point or power interruption, the machine has the memory function.
Our service:
A Guarantee :
1.Two years warranty for the whole machine.
2.Within 2 years under normal use and maintenance,
3.If something is wrong with machine, you will get spare part for free.;
4.Out of 2 years, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
4.You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 1530
- :
- :
- :
- :
- :
- :
Parameter:
Model | Remax-1530 plasma cutting machine | |
Effective cutting width(X-axis) | 1500mm | |
Effective cutting width(Y-axis) | 3000mm | |
Plasma power supply | Hypertherm of the United States | |
Drive mode | Bilateral side | |
CNC System | Beijing STARFIRE CNC | |
Plasma cutting speed | 50-6500 mm/min | |
Lifting distance of cutting torch | 150mm | |
Speed setting error | ≤±5% | |
The maximum speed of blank lines | 12000mm/min | |
Torch Height Controller Accuracy | ≤±1.0mm | |
Precision of longitudinal line | ±0.2mm/10m | |
Motor | YASKAWA servo motor and pilot engine | |
Gearbox | Hubei planet | |
Drive method | Racks and guide rails for X-axis Y Z | |
Operating accuracy | 0.01mm per step | |
Power source | 380V 50/60Hz | |
Height Controller (Plasma) | PHC 330 arc voltage height regulator for plasma cutting | |
Plasma Cutting Thickness | 1-32mm | |
| ||
Accuracy of the complete machine | ||
(Subject to the drawing to the right) | ||
Side length (four sides) | ||
1000mm x1000mm | ||
Lineation speed,500-800mm/min | ||
Length of one side | ±0.5mm | |
Diagonal error |AD-BC| | ±0.5mm | |
Error of returning to base point | ±0.2mm | |
Intersection point error | ±0.5mm | |
Front-back lineation error | ±0.2mm |
