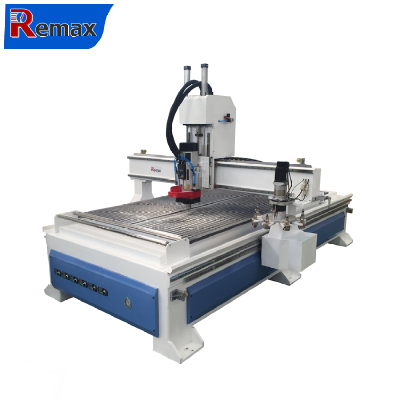

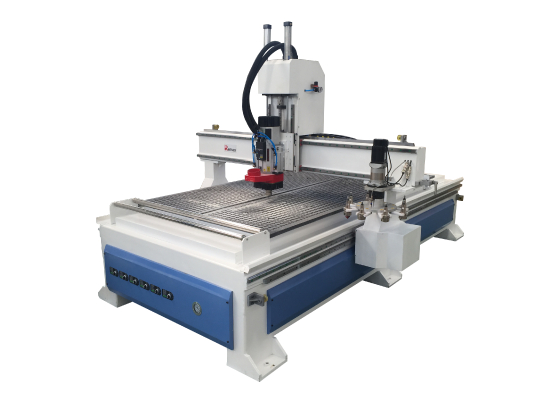

wood cnc carving machine with auto tool changer 1325
Feature :
1)Rack gear transmission ensure fast speed and accuracy.
2)Wide steel pipe lathe bed,strong and never out of shape.
3)Double motor and drivers of Y axis which can ensure steady movement.
4)Import square rail ensure high accuracy and heavy workload.
5)Adopt vacuum system.Made by advanced international technology,with double cavities,
pump of strong adsorption,can adsorb different size materials.
6)Vacuum table with 6 vacuum zones,which can absorb different size materials.
7)This machine has auto tool sensor system, convenience and save time. The advantage is low investment, high profit, easy to operate. It is also easy foe new user to operate.
8)Humanistic design,the machine can be disassembled,soit is easily transported.
- Place of Origin: Shandong
- Brand Name: Remax
- Model Number: 2030
- :
- :
- :
- :
- :
- :
- :
Parameters:
| Description | Parameter |
| X,Y,Z Workiong Area | 1300x2500x200mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| X,Y,Z Working travel | ±0.03/300mm |
| Table Surface | Vacuum or T-slot Table |
| Frame | Welded Structure |
| X,Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
| Z Sturcture | Hiwin Rail Linear Guide And TBI Ball Screw |
| Max. Power Consumption | (Without Spindle)2.5kw~3kw |
| Max.Rapid Travel Rate | 25000mm/min |
| Max.Working Speed | 18000mm/min |
| Spidle Speed | Italy HSD 9kw air cooling |
| Spindle Power | 0-24000RPM |
| Drive Motors | yaskawa servo Motor and driver |
| Tool Change | Auto Tool Change |
| Working Voltage | AC380V/50/60Hz,PH(Option:220V) |
| Command Language | G Code |
| Operating System | syntec |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collect | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software,(Option:Artcame Software) |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
| Inverter | Delta/Fuling |
| Electrical Components | Schneider |
Limit Switch | OMRON |
