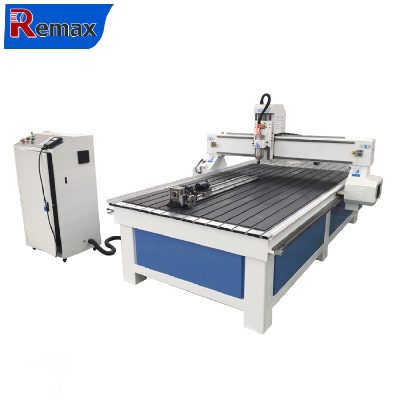

wood cnc router machine with rotary axis Remax-1325

wood cnc router machine with rotary axis Remax-1325

  • FOB Price:US $3,500 -6,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-09-03
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  11
  • Place of Origin:  Shandong
  • Brand Name:  Remax
  • Model Number:  1325
  • Weight: 1200.000 kg

wood cnc router machine with rotary axis Remax-1325

Features:



 1)5mm thickness welded steel lathe bed, strong and never out of shape

 2)Big power stepper motor and driver, YASKAWA servo motor for option.

 3)Germany Rack gear transmission ensures fast speed and high accuracy

 4)Taiwan Hiwin square rail ensures high accuracy and heavy workload

 5)Machine with good quality air vacuum pump, BECKER vacuum pump for option.

 6)Dust collector system and lubrication system with machine, let machine work for long time.

 7)Machine with Japan OMRON limit switch, Schneider electrical components, tool sensor.


  • Size:  11
  • Place of Origin:  Shandong
  • Brand Name:  Remax
  • Model Number:  1325
  • Weight: 1200.000 kg

Parameter:

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum and T-slot Table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Guide

Z Structure

Hiwin Rail Linear Guide and TBI Ball Screw

Max. Power Consumption

(Without Spindle)  2.5kw~3Kw

Max. Rapid Travel Rate

25000mm/min

Max. Working Speed

18000mm/min

Spindle Power

4.5kw air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper Motor

Working Voltage

AC220/380V  50/60HZ

Command Language

G Code

Operating System

DSP System (Options: Nc studio/Mach3 PC Software)

Computer Interface

USB

Flash Memory

128M(U Disk)

Collet

ER25

X,Y Resolution

<0.01mm

Software Compatibility

ARTCAM/Type3/UcancameV9 Software

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Inverter

Delta/Fuling

Electrical components

Schneider

Limit switch

OMRON

Driver

Leadshine or Yako
